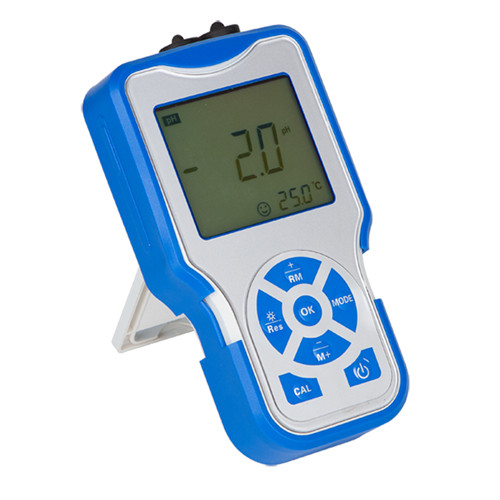

P613 Portable pH/Conductivity Meter
Item No.: P613
Large LCD screen with controllable white backlight.
Built-in microprocessor chip has Intelligent functions such as auto calibration, ATC, data storage, function settings, auto diagnosis, auto power off, and undervoltage prompt, etc.
Built-in microprocessor chip has Intelligent functions such as auto calibration, ATC, data storage, function settings, auto diagnosis, auto power off, and undervoltage prompt, etc.
Description
| P613 Portable pH/Conductivity Meter | ||
| Features: | ||
| 1. Large LCD screen with controllable white backlight. | ||
| 2. Built-in microprocessor chip has Intelligent functions such as auto calibration, ATC, data storage, function settings, auto diagnosis, auto power off, and undervoltage prompt, etc. | ||
| 3. Auto recognition of 13 buffers with three kinds of options: Europe & USA, NIST and China. | ||
| 4. Can set up pH measurement modes of high purity water and ammonia added pure water. | ||
| 5. Auto recognition of 8 conductivity standard solution with 2 kinds of options: Europe & USA, and China. | ||
| 6. Adopt advanced conductivity measurement technology, one point calibration of conductivity electrode with constant K=1 can meet the measuring accuracy requirements for test 0.5μ S/cm ~ 200mS/cm. | ||
| 7. Can switch between conductivity, TDS, salinity and resistivity. Multinomial calculation for TDS and salinity to ensure the conversion precision of the full scale. | ||
| 8. Conductivity mode has the function of non-linear temperature compensation for high purity water. | ||
| 9. Grade IP57 and equipped with suitcase for outdoor purpose. | ||
| Specification: | ||
| PH | Measuring range | (-2.00~19.99)pH |
| Resolution | 0.1/0.01 pH | |
| Accuracy | Meter:±0.01pH; Overall: ±0.02pH | |
| Input impendance | ≥1×1012 Ω | |
| Stability | ±0.01 pH/3h | |
| Temp. compensation range | (0~100)℃ (Auto/manual) | |
| mV | Measuring range (mV/ORP/EH) | -1999mV ~ 0 ~ 1999mV |
| Resolution | 1mV | |
| Accuracy | ±0.1% FS | |
| Conductivity | Measuring range | Conductivity: |
| (0.00~19.99)μS/cm | ||
| (20.0~199.9)μS/cm | ||
| (200~1999)S/cm | ||
| (2.00~19.99)mS/cm | ||
| (20.0~199.9)mS/cm | ||
| TDS:(0~100)g/L | ||
| Salinity:(0~100)ppt | ||
| Resistivity:(0~100)MΩ·cm | ||
| Resolution | 0.01/0.1/1μS/cm; 0.01/0.1 mS/cm | |
| Accuracy | ±1.0% FS, Overall:±1.5% FS | |
| Temp. compensation range | (0~100)℃(Auto/manual) | |
| Electrode constant | 0.1 / 1 / 10 cm-1 | |
| Other Technical Parameters | Data storage | 200 sets |
| Power | Two AA batteries (1.5V x2) | |
| Shipping size/G.W. | (340×270×50)mm/1Kg | |
| Working Condition | Ambient temperature | 5~35 ℃(0.01grade) |
| Ambient humidity | ≤85% | |
| IP grade | IP57 Dustproof and waterproof | |
| Meter Kits | 1) pH & Conductivity meter | |
| 2) pH composite electrode | ||
| 3) Temperature electrode | ||
| 4) Conductivity electrode (K=1) | ||
| 5) pH buffer solution | ||
| 6) Suitcase | ||
