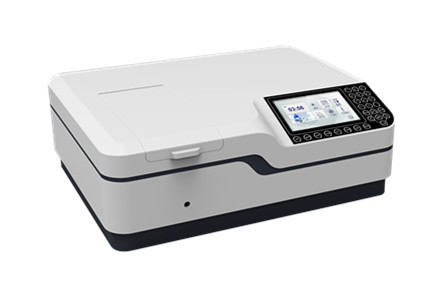

PMT Spectrophotometer
1. The use of photomultiplier tube as a detector offers exceptional sensitivity.
2. Powerful functions like Photometric measurement, Quantitative measurement, Kinetics, Spectrum scan, DNA\Protein test, multi-wavelength test, etc
2. Powerful functions like Photometric measurement, Quantitative measurement, Kinetics, Spectrum scan, DNA\Protein test, multi-wavelength test, etc
Description
| UV-Vis Spectrophotometer with PMT | ||||||
| Product Description: | ||||||
| the UV-Vis spectrophotometer is designed to meet high requirement for precision measurement in the research and production of organic chemistry, biochemistry, medical testing, food testing, environmental protection, water testing industry, etc. The latest ARM system and long optical system ensure high accuracy and good stability of the instrument. They are the best choice of high quality spectrophotometer. | ||||||
| Features: | ||||||
| 1. The use of photomultiplier tube as a detector offers exceptional sensitivity. | ||||||
| 2. Powerful functions like Photometric measurement, Quantitative measurement, Kinetics, Spectrum scan, DNA\Protein test, multi-wavelength test, etc | ||||||
| 3. In-house massive memory is capable of saving up to 1024M for test data & working curves. | ||||||
| 4. Supports USB & SD card storage. The USB port can be used for data transfer, which is easily exported to Excel for further processing, analysis and storage. | ||||||
| 5. Socket type deuterium and tungsten lamp can make lamps switching without optics debugging and easy to be replaced. | ||||||
| 6. Large sample chamber allows the easy interface of optional accessaries. | ||||||
| 7. Extensive accessories are optional, such as auto 8-cell holder, peltier/sipper system, reflection accessories, 21 CFR compliant software, etc. | ||||||
| Specifications: | ||||||
| Model | T8000 | T8001 | T8001S | T9000 | T9001 | T9001S |
| Optical System | Double Beam, Grating 1200 lines/mm | |||||
| Wavelength Range | 190-1100 nm | |||||
| Spectral Bandwidth | 2nm | 1nm | 0.5/1/2/4/5 | 2nm | 1nm | 0.5/1/2/4/5 |
| Wavelength Accuracy | ±0.3nm | |||||
| Wavelength Repeatability | <=0.1nm | |||||
| Photometric Accuracy | 0.2%T(0~100%T), ±0.002A(0-0.5A), ±0.004A(0.5-1A) | |||||
| Photometric Repeatability | ≤0.15%T (0-100%T), 0.001A(0-0.5A), 0.002A(0.5-1A) | |||||
| Photometric Range | 0-200%T, -4~4A, 0-9999C (0-9999F) | |||||
| Stray Light | <=0.03%T@220nm, 360nm | |||||
| Stability | ±0.0005A/h@500nm | ±0.0003A/h @500 nm | ||||
| Baseline Flatness | ±0.001A | ±0.0003A | ±0.001A | |||
| Noise | 0.0005A@500nm | |||||
| Work mode | T, A, C, E | |||||
| Scanning speed | Fast, Mid, Slow | |||||
| Wavelength setting | Auto | |||||
| Display | 7" color LCD | 10.1" color touch LCD | ||||
| Light Source | Imported Deuterium & Tungsten lamp | |||||
| Detector | Imported PMT | |||||
| Output | USB/RS232 | |||||
| Power | AC 220V/50Hz or AC 110V/60Hz | |||||
| Dimension | 590 x 475 x 250mm | 760*560*280mm | 590 x 475 x 250mm | 760*560*280mm | ||
| Net Weight | 20kg | 28kg | 20kg | 28kg | ||
| Shipping Size | 810*660*390mm | 880*690*520mm | 810*660*390mm | 880*690*520mm | ||
| Gross Weight | 33kg | 47kg | 33kg | 47kg | ||
